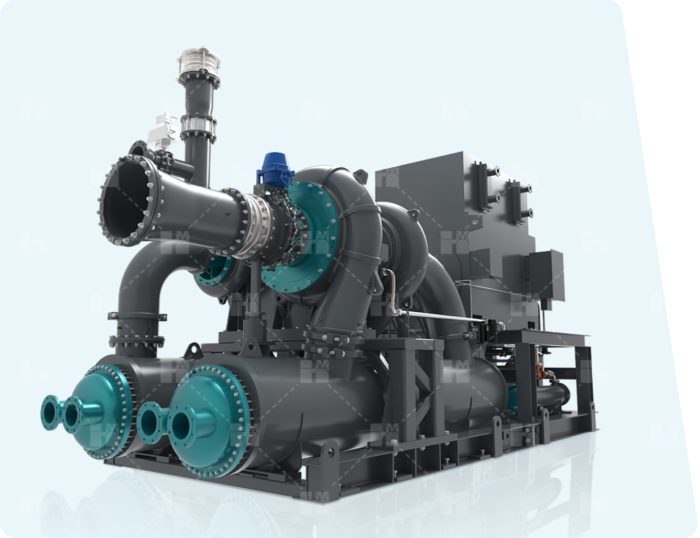

Multi-shaft Multi-stage Compressor

Home / Centrifugal Compressor /  Multi-shaft Multi-stage Compressor

Multi-shaft-Multi-stage-Compressor-Series
Multi-shaft-Multi-stage-Compressor-Series

Parameter Table for Multi-shaft and Multi-stage Compressors

Model Pressure
bar(G)		 Flow Range
m³/min		 Rated Power
kW
HM6000 1.8-13 55-100 220-800
HM12000 1.8-13 100-200 315-1250
HM15000 1.8-30 150-250 450-2240
HM25000 1.8-30 220-370 630-3550
HM30000 1.8-30 310-450 800-4500
HM45000 1.8-16 450-700 1250-5000
HM60000 1.8-16 600-1000 1700-7400
HM100000 1.8-16 1000-1600 2600-12000
HM150000 1.8-16 1600-2500 4200-17500
HM200000 1.8-16 2500 6200-23500
