Introduction

With power coverage of 200-5580kW, max. speed 1800RPM and max. discharge pressure 50Mpa, Himile reciprocating compressors are widely used in areas of natural gas wellhead, treatment plant, gathering station, pressure regulating station, gas storage, offshore platform, LNG plant, CNG filling station and other scenarios, etc.

Typical applications are conventional natural gas, shale gas, coalbed methane, air, nitrogen, carbon dioxide and other gases.

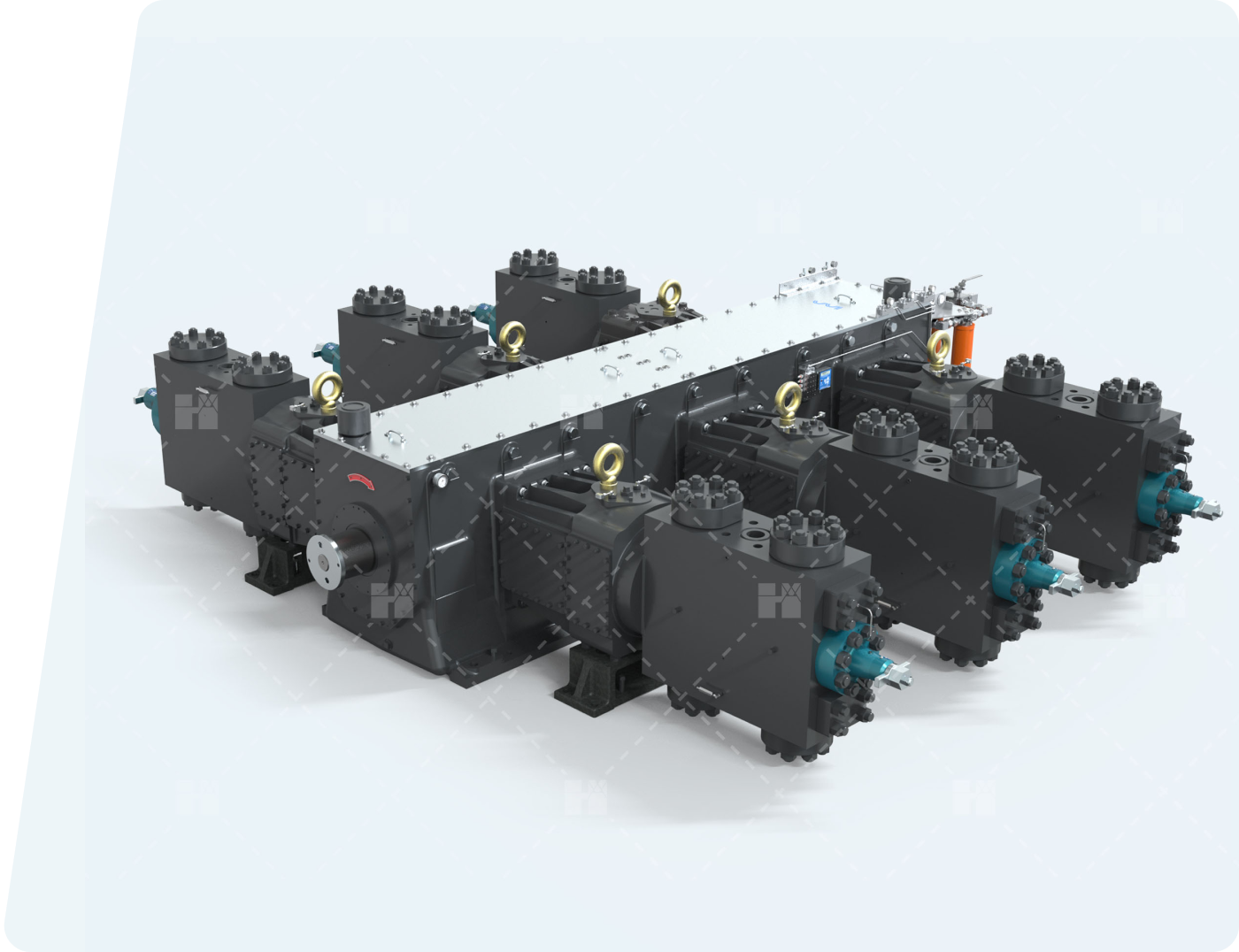

Reciprocating compressor

Parameters of Himile Reciprocating Compressor

Model Throw Stroke(mm) Frame Rated Power (kW) Speed (RPM) Piston Rod (φ/mm) Max. Gas Rod Load (kN)
CHA 2/4 76 216/432 600-1800/750-1800 28.5 58
CHB 2/4 90 300/600 900-1800 35 66
CHD 2/4 90 450/900 900-1800 40 90
CHE 2/4 127 886/1771 600-1400 51 178
CHF 2/4 152.5 1350/2700 600-1200 57.2 231
CHG 2/4/6 152.5 1350/2700/4050 600-1200 63.5 289
CHJ 2/4/6 178 1860/3720/5580 450-1000 70 334
CHK 2/4 152.5 2250/4500 450-1200 70 334

Models and Applications of Himile
High-speed Reciprocating Compressor

CHA-Reciprocating-Compressor

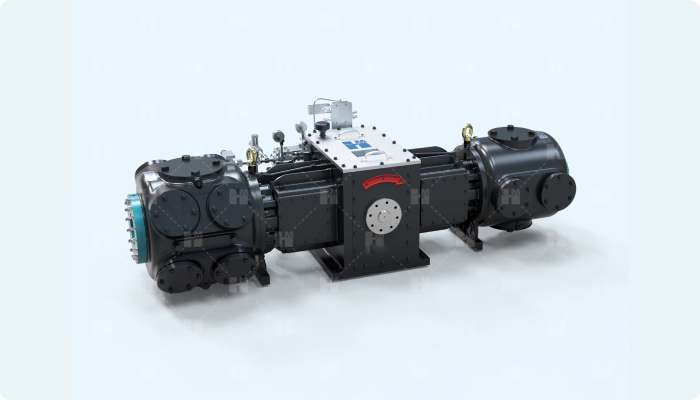

CHA Reciprocating Compressor

CHA Reciprocating Compressor

CHD-Reciprocating-Compressor

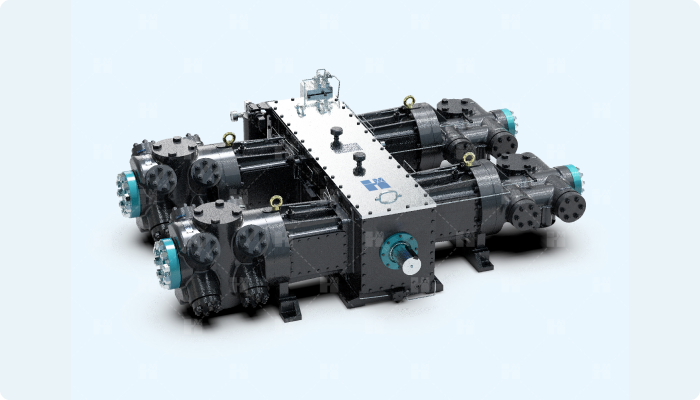

CHD Reciprocating Compressor

CHD Reciprocating Compressor

CHE Reciprocating Compressor

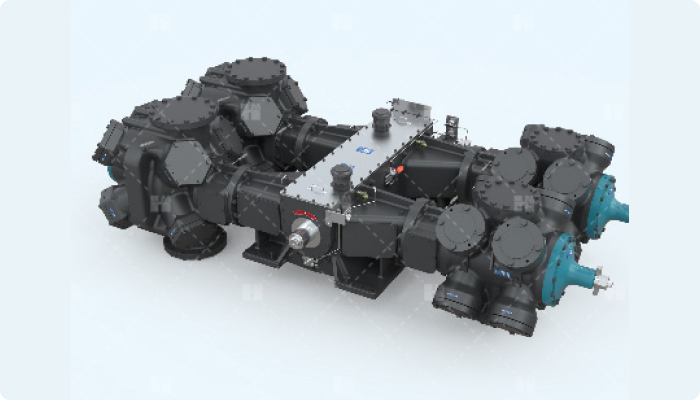

CHE Reciprocating Compressor

CHE Reciprocating Compressor

CHF-Reciprocating-Compressor

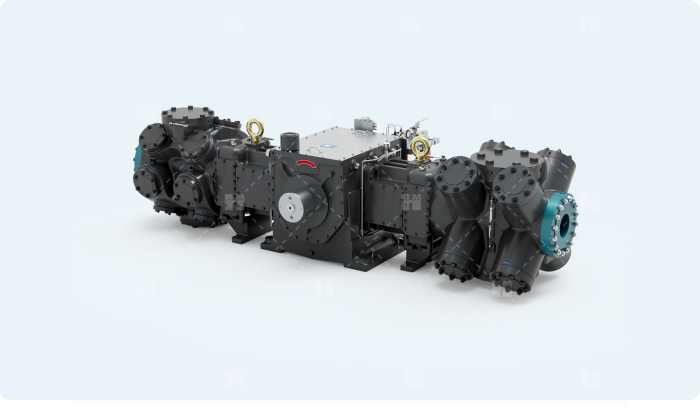

CHF Reciprocating Compressor

CHF Reciprocating Compressor

CHJ Reciprocating Compressor

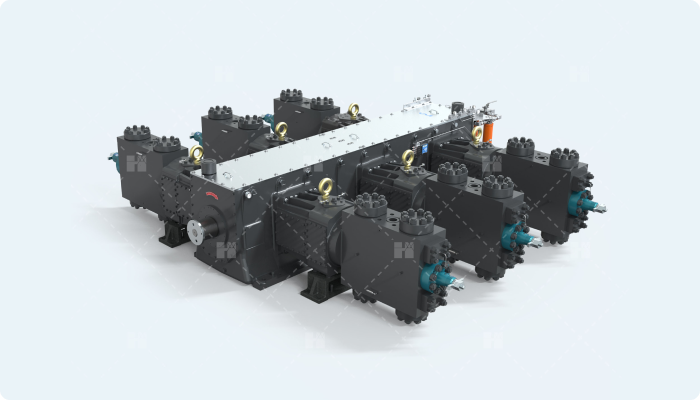

CHJ Reciprocating Compressor

CHJ Reciprocating Compressor

CHK-Reciprocating-Compressor

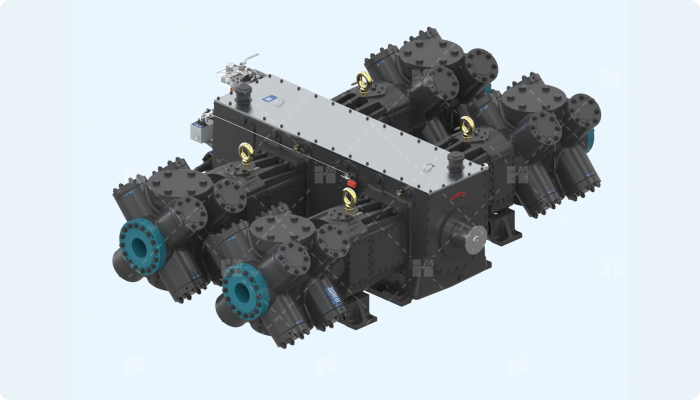

CHK Reciprocating Compressor

CHK Reciprocating Compressor
