XHQ 400/500/630/800

High Speed & High Precision Five-axis Machining Center

The gantry-structure integral casting machine body is equipped with high-performance electric spindle and direct-drive cradle rotary table, which meets the requirements of high-speed and high-precision machining and is suitable for five-axis simultaneous machining of impellers, precision molds, precision parts and complex structural parts.

Training System

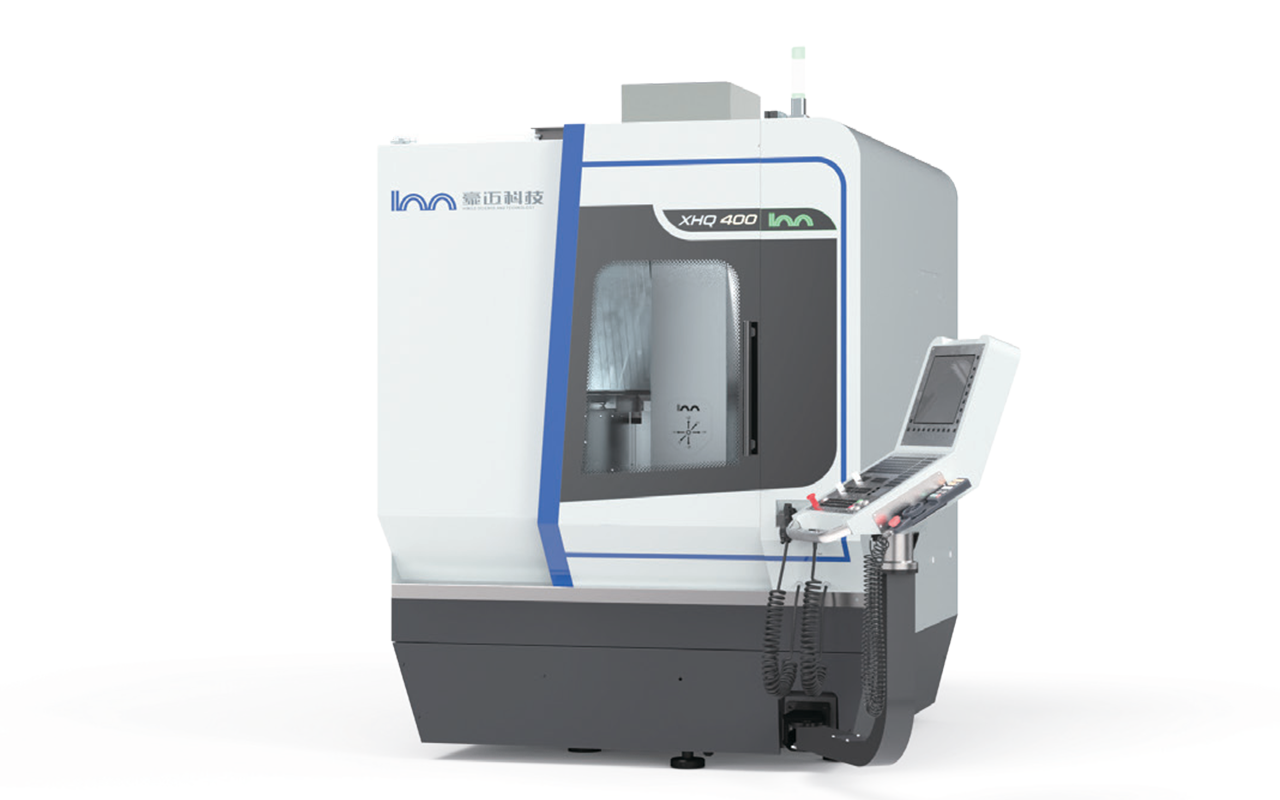

XHQ400

Worktable Dim. (mm)Ø400
Max. Workpiece Dim. (mm)Ø420 x 400
Worktable Max. Load Capacity (kg)200
Spindle Taper Hole SizeHSK-A63
Spindle Torque (Nm)51/54-90/30.7/46
Spindle Max. RPM (r/min)20000
XYZ-axes Fast Moving Speed (m/min)60/60/60
A/C-axes Fast Moving Speed (r/min)80/200
Training System

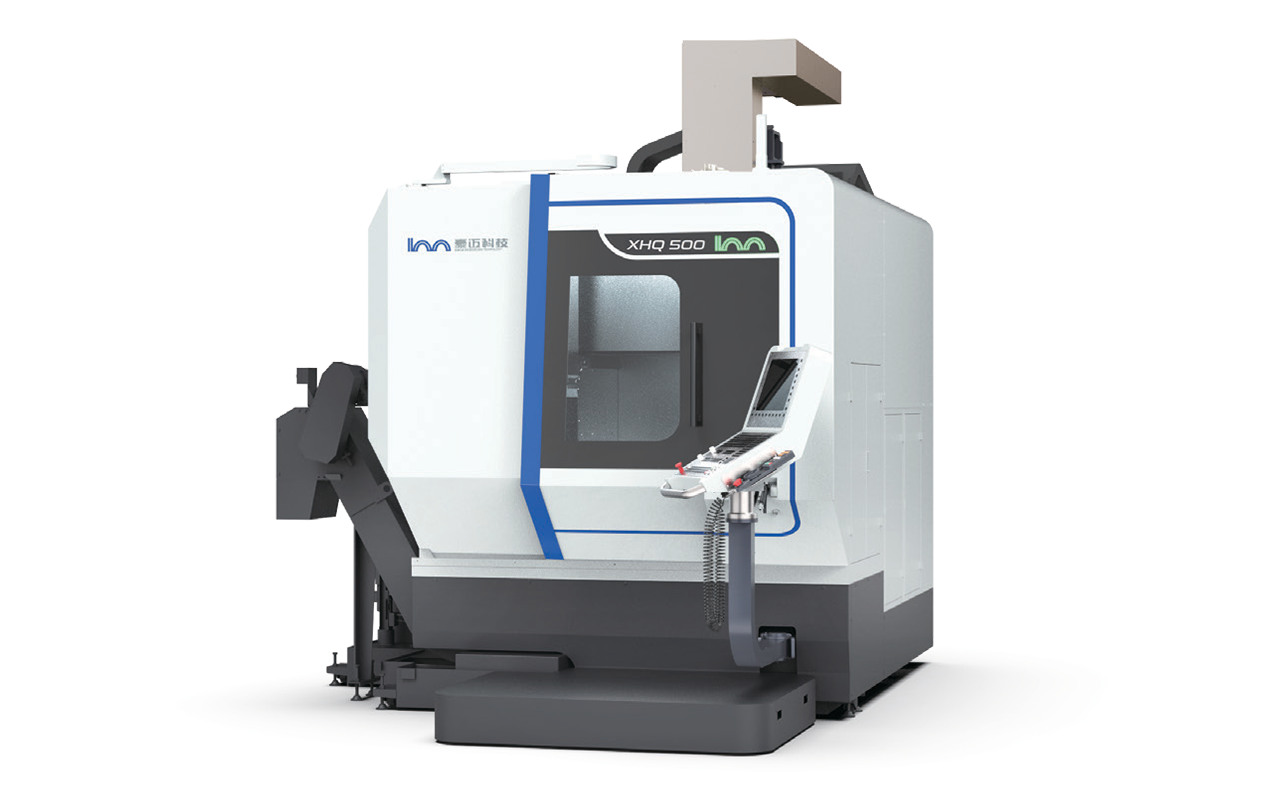

XHQ500

Worktable Dim. (mm)Ø500
Max. Workpiece Dim. (mm)Ø700 x 500
Worktable Max. Load Capacity (kg)350
Spindle Taper Hole SizeHSK-A63
Spindle Torque (Nm)51/54-90/61.3/92
Spindle Max. RPM (r/min)18000
XYZ-axes Fast Moving Speed (m/min)60/60/60
A/C-axes Fast Moving Speed (r/min)80/120
Training System

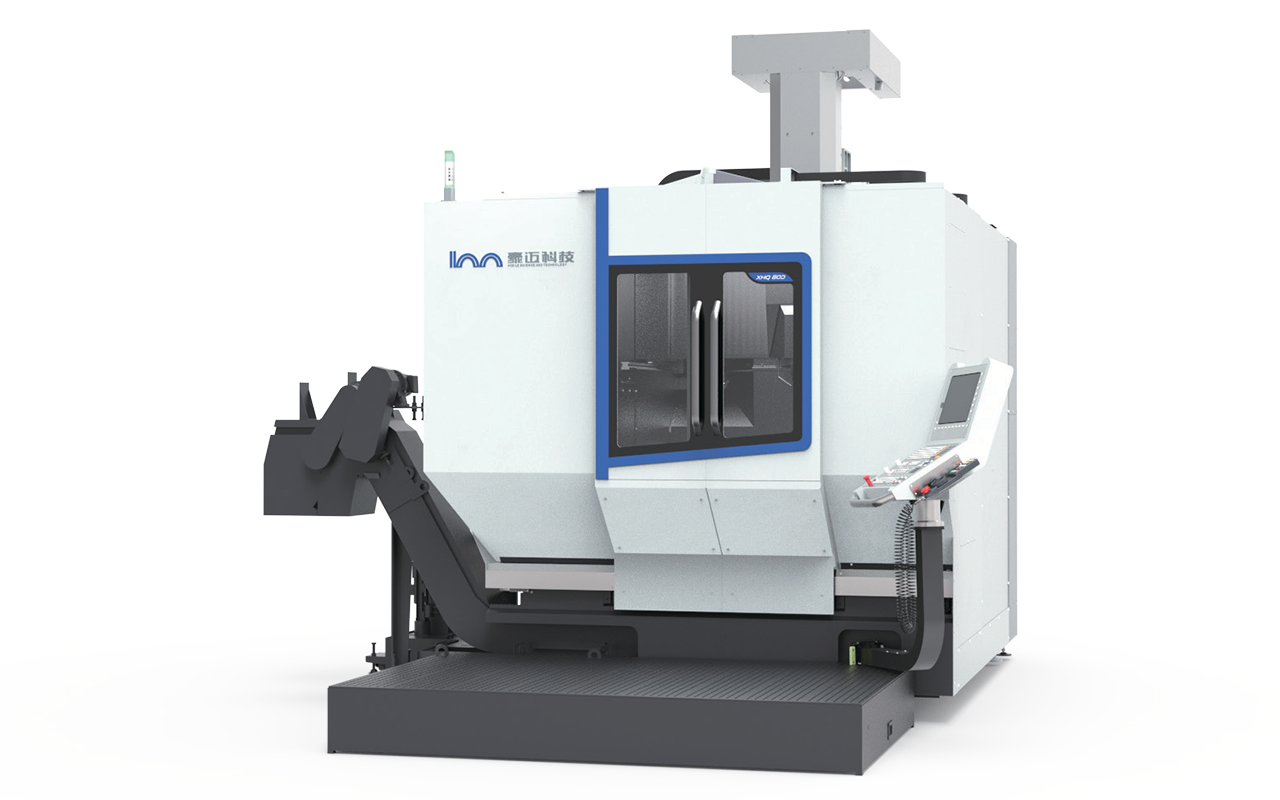

XHQ630

Worktable Dim. (mm)Ø630
Max. Workpiece Dim. (mm)Ø900 x 500
Worktable Max. Load Capacity (kg)650
Spindle Taper Hole SizeHSK-A63
Spindle Torque (Nm)51/54-90/87/135
Spindle Max. RPM (r/min)20000
XYZ-axes Fast Moving Speed (m/min)60/60/60
A/C-axes Fast Moving Speed (r/min)60/100
Training System

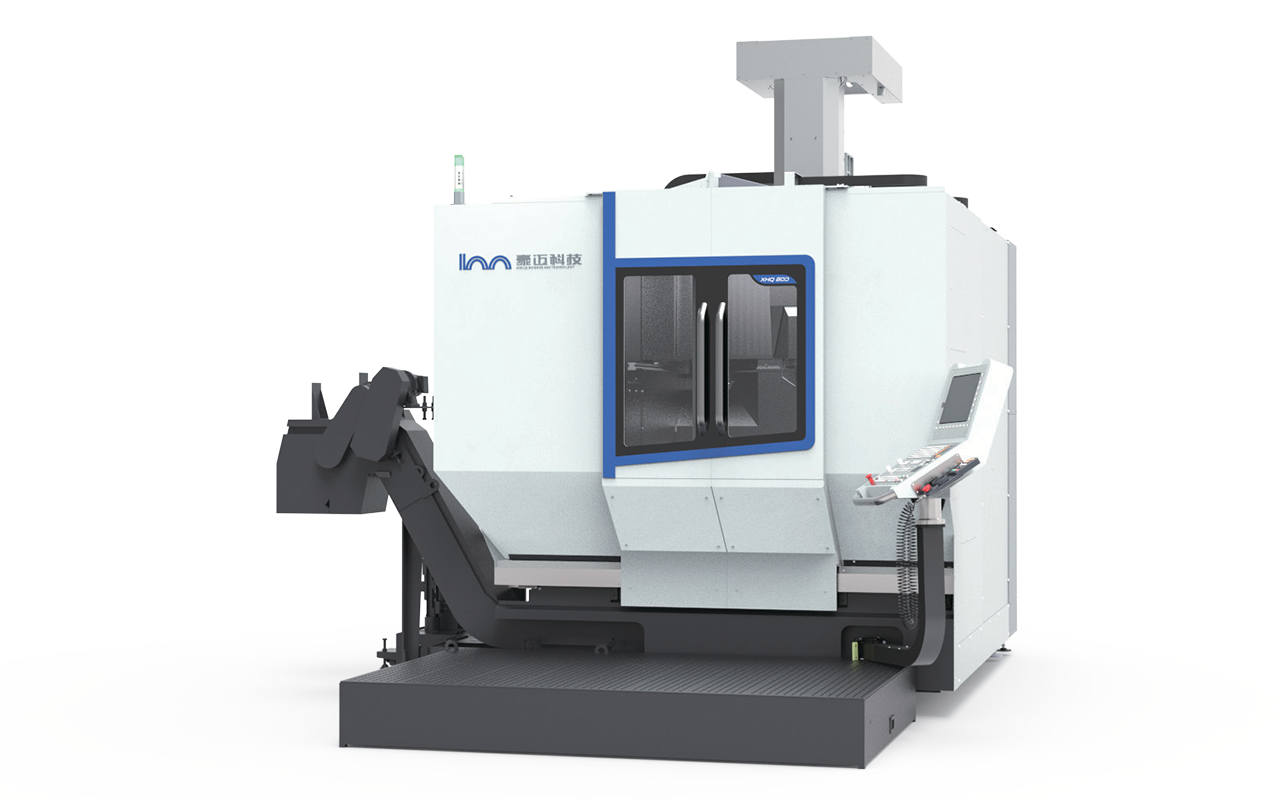

XHQ800

Worktable Dim. (mm)Ø800
Max. Workpiece Dim. (mm)Ø1100 x 600
Worktable Max. Load Capacity (kg)900
Spindle Taper Hole SizeHSK-A63
Spindle Torque (Nm)51/54-90/87/135
Spindle Max. RPM (r/min)20000
XYZ-axes Fast Moving Speed (m/min)60/60/60
A/C-axes Fast Moving Speed (r/min)60/80

Machining Example

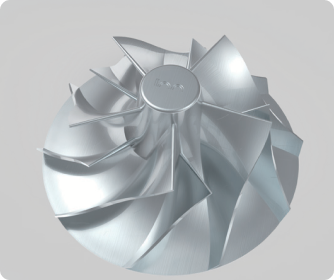

Impeller
Impeller

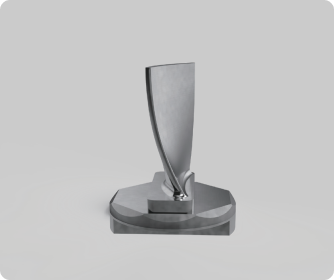

Guide Blade
Guide Blade

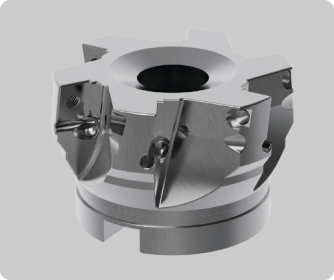

Disc Cutter Body
Disc Cutter Body

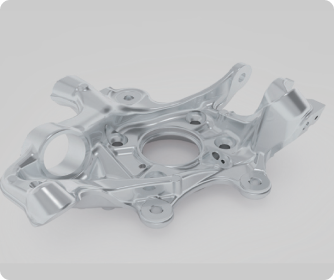

Knuckle
Knuckle

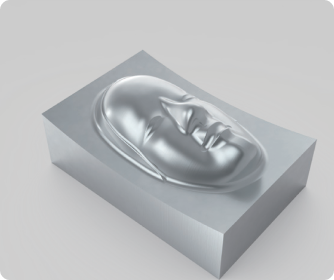

Face Exhibit
Face Exhibit
