XHS 320/400/630/800/1000

High Load Bearing Big Torque High Speed High Precision Five-axis Machining Center

The gantry-structure integral casting machine body is equipped with a high-torque electric spindle and a high-load double direct-drive cradle rotary table, which is suitable for the rough and fine machining of high-weight, difficult-to-cut, complex and precise parts made of die steel, titanium alloy and stainless steel

Training System

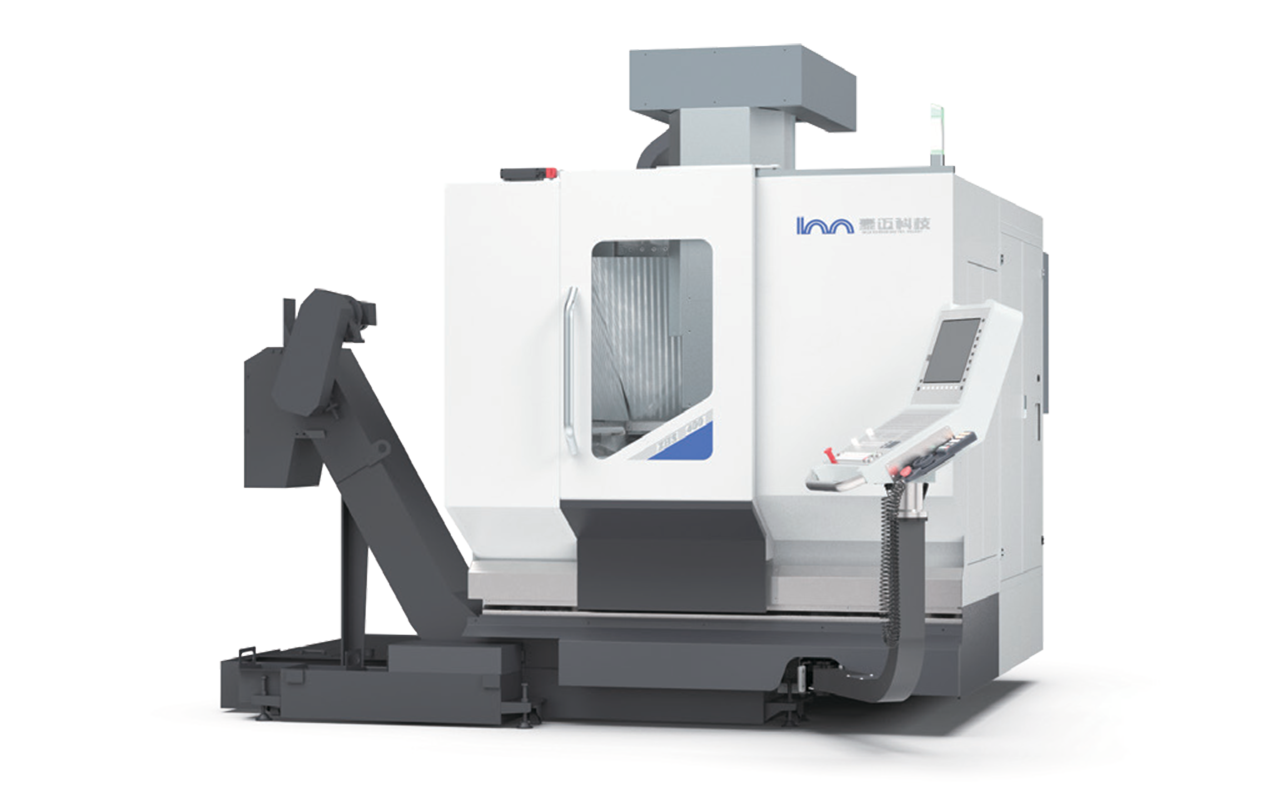

XHS400

Worktable Dim. (mm) Ø400
Max. Workpiece Dim. (mm) Ø600 x 350
Worktable Max. Load Capacity (kg) 350 Milling (175 Turning)
Spindle Taper Hole Size HSK-A/T63
Spindle Torque (Nm) 51/54-90/87/135
Spindle Max. RPM (r/min) 20000
XYZ-axes Fast Moving Speed (m/min) 60/60/60
A/C-axes Fast Moving Speed (r/min) 100/120 Milling (2000 Turning)
Training System

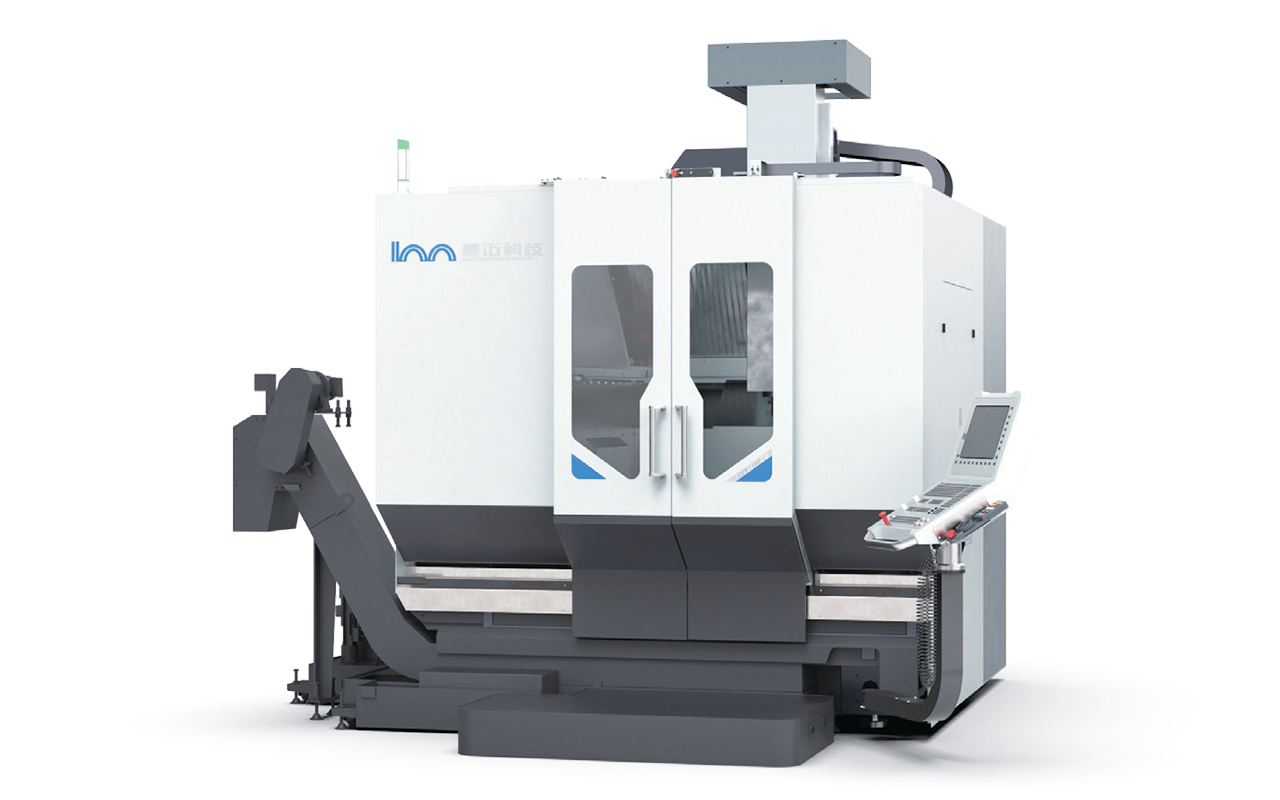

XHS630

Worktable Dim. (mm) Ø630
Max. Workpiece Dim. (mm) Ø850 x 500
Worktable Max. Load Capacity (kg) 1200 Milling (600 Turning)
Spindle Taper Hole Size HSK-A/T63
Spindle Torque (Nm) 51/54-90/87/135
Spindle Max. RPM (r/min) 20000
XYZ-axes Fast Moving Speed (m/min) 60/60/60
A/C-axes Fast Moving Speed (r/min) 80/120 Milling (850 Turning)
Training System

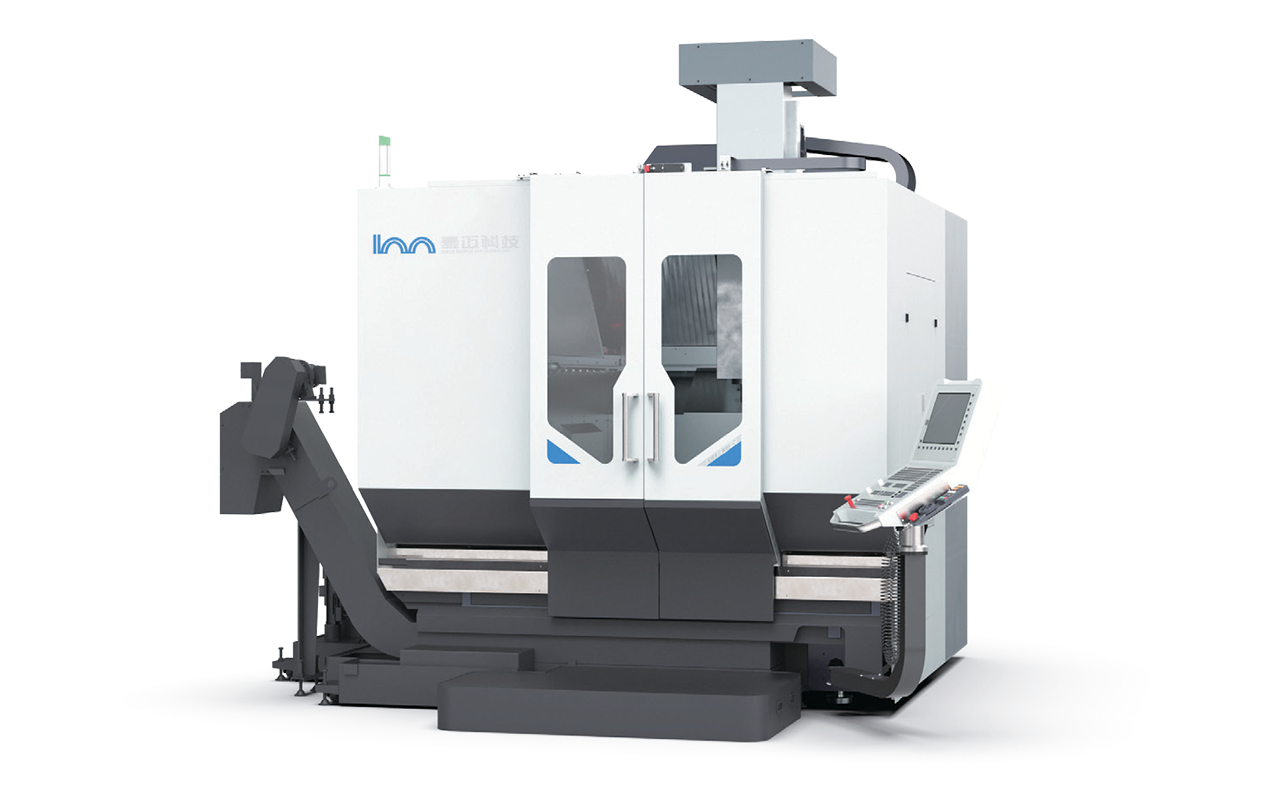

XHS800

Worktable Dim. (mm) Ø800
Max. Workpiece Dim. (mm) Ø1000 x 650
Worktable Max. Load Capacity (kg) 1500 Milling (750 Turning)
Spindle Taper Hole Size HSK-A/T63
Spindle Torque (Nm) 51/54-90/130/200
Spindle Max. RPM (r/min) 15000
XYZ-axes Fast Moving Speed (m/min) 60/60/60
A/C-axes Fast Moving Speed (r/min) 60/80 Milling (850 Turning)
Training System

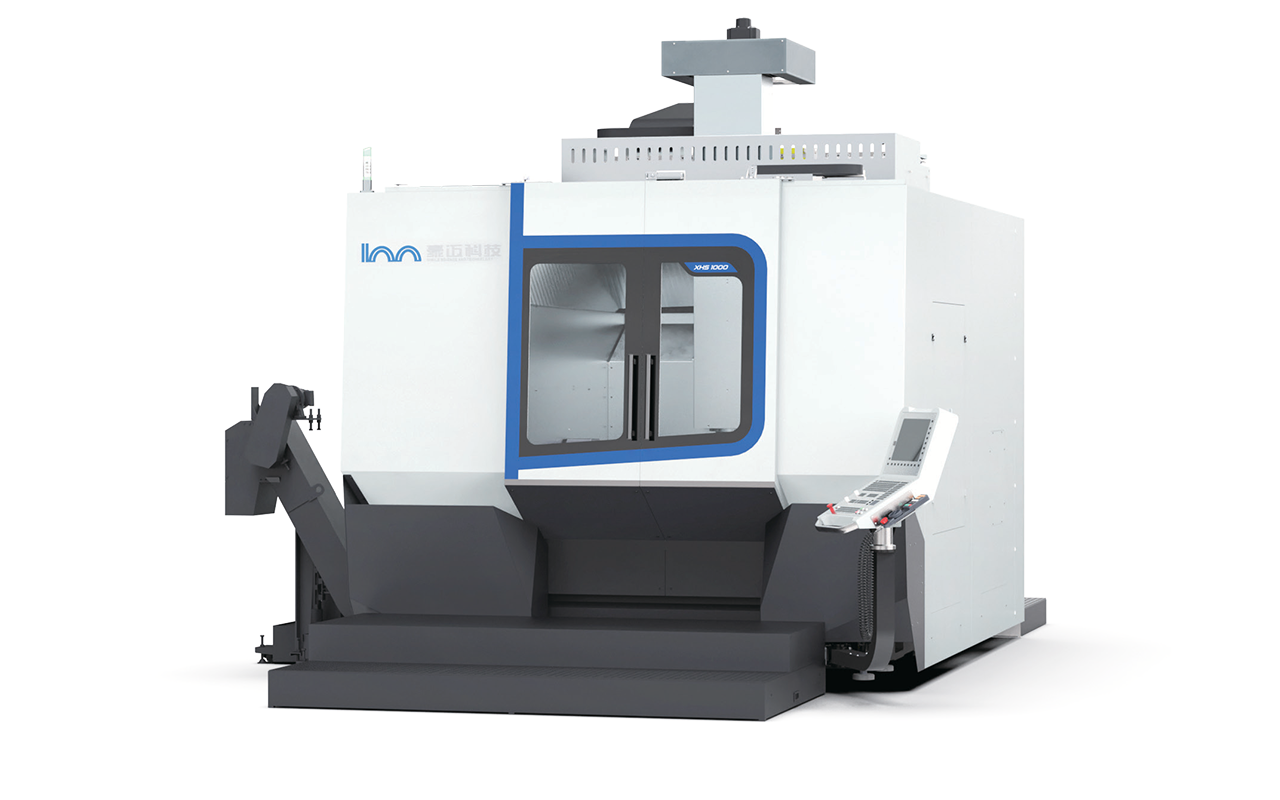

XHS1000

Worktable Dim. (mm) Ø1000
Max. Workpiece Dim. (mm) Ø1300 x 700
Worktable Max. Load Capacity (kg) 2600 Milling (1300 Turning)
Spindle Taper Hole Size HSK-A/T100
Spindle Torque (Nm) 51/54-90/220/305
Spindle Max. RPM (r/min) 15000
XYZ-axes Fast Moving Speed (m/min) 60/60/60
A/C-axes Fast Moving Speed (r/min) 40/80 Milling (550 Turning)

Application Area

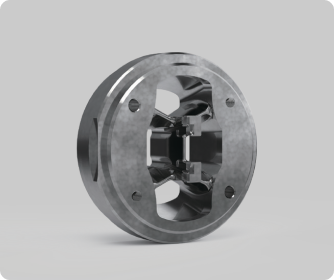

Extrusion-Die
Extrusion Die

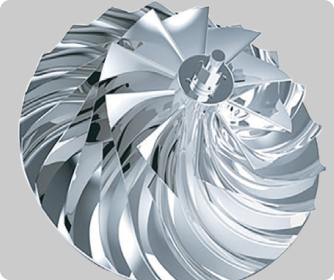

Turbine Machinery
Turbine Machinery

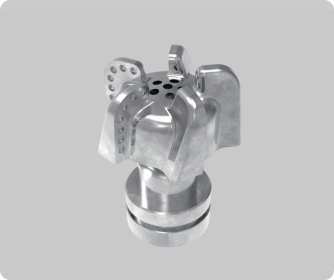

Energy
Energy

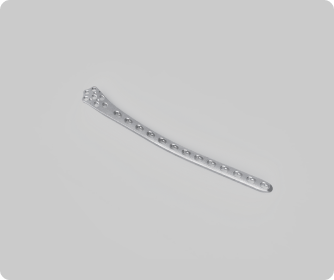

Medical
Medical
Face Exhibit

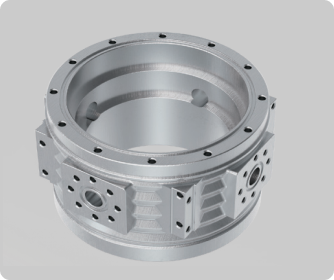

Automobile
